Uvonair CD

When used responsibly, ozone is proven to kill 99.99% of harmful viruses and bacteria (like SARS), and may be beneficial in combatting the COVID-19 Coronavirus.

Uvonair® Ozone Generators are:

• Over 20 Years Proven & Tested!
• Backed Under Warranty!
• Approved to UL Safety Standards!

NOTE: Most ozonators in the marketplace are not proven or tested to UL standards!

Are you sure your odor is being eliminated? Be sure with UVONAIR®! The ONLY choice for quality INDUSTRIAL STRENGTH ODOR ELIMINATORS! It doesn't just mask odors, IT DESTROYS IT!

Uvonair® odor eliminators generate ozone, one of nature’s most effective oxidizing agents! Ozone safely alters the molecular structure of offensive micro-organisms, to eliminate odors.

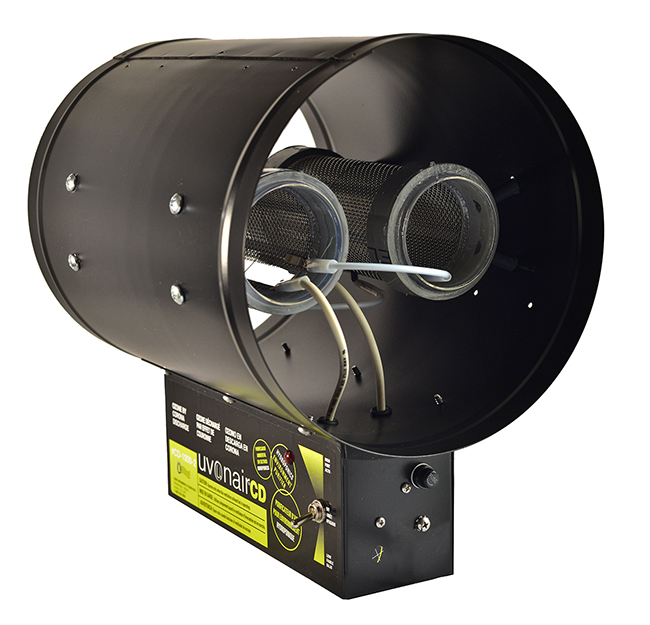

The Uvonair® CD-1200 In-Duct Ozone Model is a high output Corona Discharge generator that produces more ozone than any others known at this time. It is adjustable to match the ozone demand load for odor control as well as provide energy conservation in low demand periods. The CD generator does not require servicing.

• Ideal for rooms from 40,000 cu.ft. (1200 m3) up to 100,000 cu.ft. (3000 m3)
• Installs into 12 inch (30 cm) ducts to treat the air as it is being exhausted
• Adjustable (HIGH/LOW/OFF) switch. The Uvonair® CD-1200 will produce very high levels of ozone at its high setting. Determine the ozone level required by monitoring the exhaust air for odors. Levels may vary throughout the growing cycle. For extreme odors, it is better to use this higher output unit than smaller Uvonair® CD models.
• Can be installed into other size ducts using adapters* (however, larger ducts may compromise airflow). Uvonair® CD models are recommended in larger ducts and high odor situations.
• Works in areas with high HUMIDITY
• Works in a wide range of TEMPERATURES
• DEODORIZES grow rooms
• ENVIRONMENTALLY FRIENDLY creating no hazardous waste!
• Full one year warranty
• No maintenance required
• *Adapters not included; use with ventilation system

The Uvonair® CD-1000-1, Single Cell and the Uvonair® CD-1000-2, Two Cell In-Duct Ozone Models are high output Corona Discharge generators that produces more ozone than any others known at this time. It is adjustable to match the ozone demand load for odor control as well as provide energy conservation in low demand periods The CD generator does not require servicing.

• Uvonair® CD-1000-1 is ideal for rooms from 10,000 cu.ft (300 m3) up to 20,000 cu.ft. (600 m3)
• Uvonair® CD-1000-2 is ideal for rooms from 20,000 cu.ft (600 m3) up to 40,000 cu.ft. (1200 m3)
• Both models install into 10 inch (25 cm) ducts to treat the air as it is being exhausted
• Both models come equipped with an adjustable (HIGH/LOW/OFF) switch
• Both models can be installed into other size ducts using adapters* (however, larger ducts may comprimise airflow). Uvonair® CD models are recommended in larger ducts and high odor situations.
• Works in areas with high HUMIDITY
• Works in a wide range of TEMPERATURES
• DEODORIZES grow rooms
• ENVIRONMENTALLY FRIENDLY creating no hazardous waste!
• Full one year warranty
• No maintenance required
• *Adapters not included; use with ventilation system

The Uvonair® CD-800 In-Duct Ozone Model is a high output Corona Discharge generator that produces more ozone than any others known at this time. It is adjustable to match the ozone demand load for odor control as well as provide energy conservation in low demand periods The CD generator does not require servicing.

• Ideal for rooms from 10,000 cu.ft (300 m3) up to 20,000 cu.ft. (600 m3)
• Installs into 8 inch (20 cm) ducts to treat the air as it is being exhausted
• Adjustable (HIGH/LOW/OFF) switch
• Can be installed into other size ducts using adapters* (however, larger ducts may comprimise airflow). Uvonair® CD models are recommended in larger ducts and high odor situations
• Works in areas with high HUMIDITY
• Works in a wide range of TEMPERATURES
• DEODORIZES grow rooms
• ENVIRONMENTALLY FRIENDLY creating no hazardous waste!
• Full one year warranty
• No maintenance required
• *Adapters not included; use with ventilation system

The Leader In Hydroponic Ozonation! Engineered, Built & Guaranteed by Years of Ozone Generation Experience!

INSTALLATION:

• Position the Uvonair® CD In-Duct Odor Eliminator generator, where possible, a minimum of 15 ft. (5 m) from the end of the exhaust duct to ensure adequate reaction time with odors. We recommend a minimum of 15 ft. (5m) of ductwork.
• When using a fan, always put the ozonator on the output side of the fan.
• Requires 110V 60Hz electrical power• Install in accordance to local electrical standards.
• As a safety feature, the Uvonair® CD unit must be working in tandem with the ventilation exhaust fan.
• Follow manufacturers’ instructions regarding synchronizing with the ventilation fan.
• Uvonair® CD is equipped with a 6 ft (2m) cord with a grounded three-prong plug and a surge protection fuse.
• Contact qualified personnel to install the proper outlet.
• Do not alter the plug in any way.
• Use caution to keep all electrical connections dry.

Note: The Uvonair® CD In-Duct system should be located so that a connection can be made to the electrical source without the use of an extension cord. No maintenance is required of these units. NOT serviceable by user, for any maintenance issues please contact your local dealer.

OPERATION DIRECTIONS:

• Consult a ventilation professional for specific duct lengths as this may vary depending on the existing duct setup and its ability to adjust for the insertion of the Uvonair® UV In-Duct system.
• The weight of the unit must be supported with duct-hanging wire from the support bracket to a hook or nail on the joists above. Make final adjustment after final installation.
• Insert the unit into the existing ducts up to mounting ridges making it airtight using duct tape or clamps.
• Disconnect power to the unit prior to servicing.

*NOT FOR HOUSEHOLD USE. COMMERCIAL USE ONLY

Covid-19

Can Ozone's Effectiveness in Killing SARS Coronavirus Combat COVID-19?

According to the World Health Organization (WHO), coronaviruses are a large family of viruses that cause illnesses ranging from the common cold to more severe diseases such as Middle East Respiratory Syndrome (MERS-CoV) and Severe Acute Respiratory Syndrome (SARS-CoV). Since ozone has been proven to kill 99.999 percent of pathogens in the air, including SARS Coronavirus and influenzas such as H5N1, researchers believe that ozone may be an important and effective tool in combatting and neutralizing the new stronger strand Coronavirus Disease 2019 (COVID-19), which has a similar makeup to SARS.

Ozone is nature’s cleanser. It is naturally formed by lightning through a process called "Corona Discharge" as well as by "UV Light" from the sun and can be found within the stratospheric layer of our atmosphere known as the “Ozone Layer." Generated, "High Energy", UltraViolet or Electricity strikes Oxygen (O2) molecules forcing the two atoms to split and collect a third, creating Ozone (O3). When ozone, encounters a pathogen, one of the oxygen atoms separates, pierces the cell wall of the pathogen and destroys it.

Ozone destroys viruses (which are composed of small particles made up of crystals) by attacking the nucleic acid core, thus damaging the viral RNA. After the ozone destroys and purifies these particles, the ozone dissipates and reverts back to healthy breathable oxygen with zero harmful by-products. In past studies, 99 percent of viruses have been destroyed and showed damage to their envelope proteins after 30 seconds of exposure to ozone. Since COVID-19 is an enveloped virus, exposure to ozone may result in the virus's failure to attach to normal, healthy cells, and the breakdown of the single-stranded RNA can lead to the destruction of the virus.

For decades, ozone has been the safest and most cost-effective option for protecting people by killing dangerous viruses, bacteria and other threats in homes and businesses. It is the strongest disinfectant available to the public. The FDA, USDA and EPA have approved ozone as an antimicrobial disinfectant. Ozone is 3,000 times faster and 50% more powerful than bleach, kills Staph, Salmonella, E.coli, Listeria, Strep, MRSA, mold, mildew, bacteria and viruses on impact without any chemical residue left behind.

Ozone Environmental Technologies have been manufacturing Commercial/Industrial Uvonair® Ozonators since 1994. Our Uvonair® UltraViolet (UV) and Corona Discharge (CD) ozone generating product lines provide ultimate air deodorizing and purification for a variety of applications.

OZONE CAUTIONS

UVONAIR® ROOM MODELS

Uvonair® 1000, 3000, 5000 are SOLELY FOR INDUSTRIAL USE* and are to be used by professionals in controlled areas where people are not physically present for prolonged periods of time.

The intended use of this product is for:

• Odor and smoke control in the Hotel Industry.
• Odor and smoke control in the Vehicle Reconditioning Industry.
• And other industrial uses where people do not typically occupy the space.

*NOT FOR HOUSEHOLD USE. COMMERCIAL USE ONLY

Ozone in concentrations above .05 ppm may be injurious to human health.

UVONAIR ® UV & CORONA DISCHARGE IN-DUCT SYSTEMS

Uvonair® In-Duct systems - UV80H, CD800, CD1000-1, CD1000-2 and CD1200 are designed to be used SOLELY FOR INDUSTRIAL USE* as a physically integrated part of a central heating / Air conditioning, or VENTILATION SYSTEM. Once installed, in-line, with the existing HVAC system, all concentrations of ozone are safely exhausted leaving no residual harmful concentrations of ozone in the room.

*NOT FOR HOUSEHOLD USE. COMMERCIAL USE ONLY
