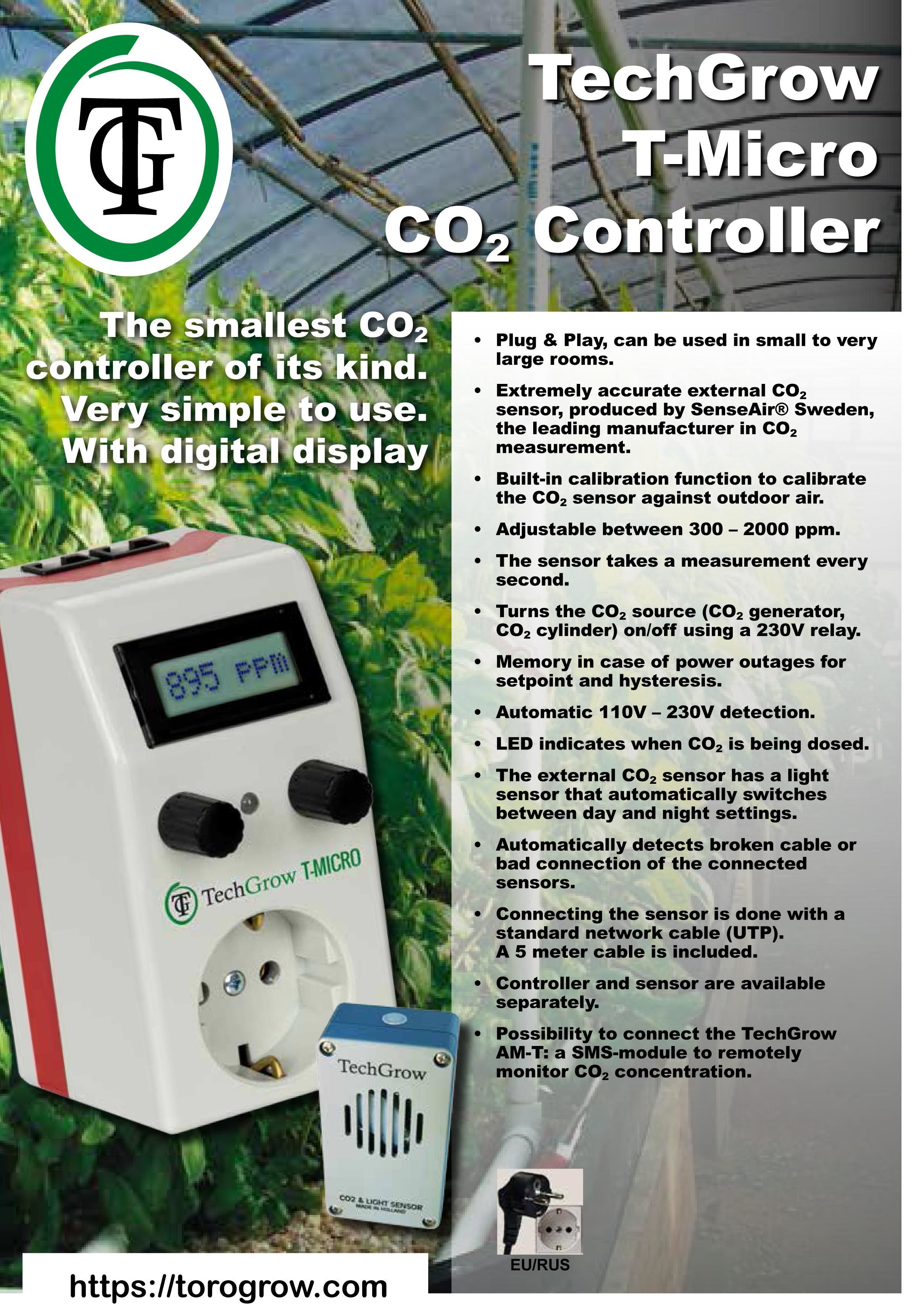

The smallest controller in our series. A complete and very easy to operate CO2controller. Best in its class thanks to its completely digital technique.

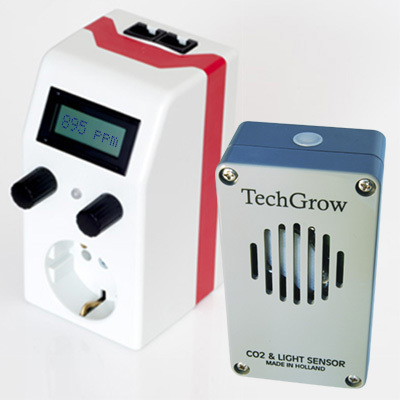

The TechGrow T-Micro CO2 Controller is a digitally controlled device that measures and regulates the CO2 value in a room. Automatically switches between Day/Night settings by means of the external CO2-sensor and light sensor.

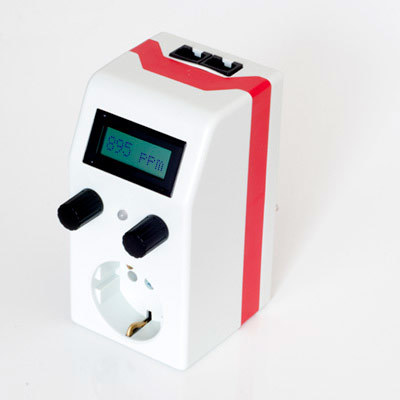

The T-Micro CO2 Controller has a robust casing and is equipped with an LCD-display.
Furthermore, the T-Micro’s built-in calibration function makes it possible to calibrate the CO2 sensor against outdoor air.
Special features:
Plug & Play, can be used in small to very large rooms.
Extremely accurate external CO2sensor, produced by SenseAir® Sweden, the leading manufacturer in CO2measurement.
Built-in calibration function to calibrate the CO2sensor against outdoor air.
Adjustable between 300 – 2000 ppm.
The sensor takes a measurement every second.
Turns the CO2source (CO2generator, CO2cylinder) on/off using a 230V relay.
Memory in case of power outages for setpoint and hysteresis.
Automatic 110V – 230V detection.
LED indicates when CO2is being dosed.
The external CO2sensor has a built-in light sensor to automatically switch between Day/Night settings.
Automatically detects broken cable or bad connection of the connected sensors.
Connecting the sensor is done with a standard (UTP) network cable. Included is a 5 meter cable.
Controller and sensor are available separately.

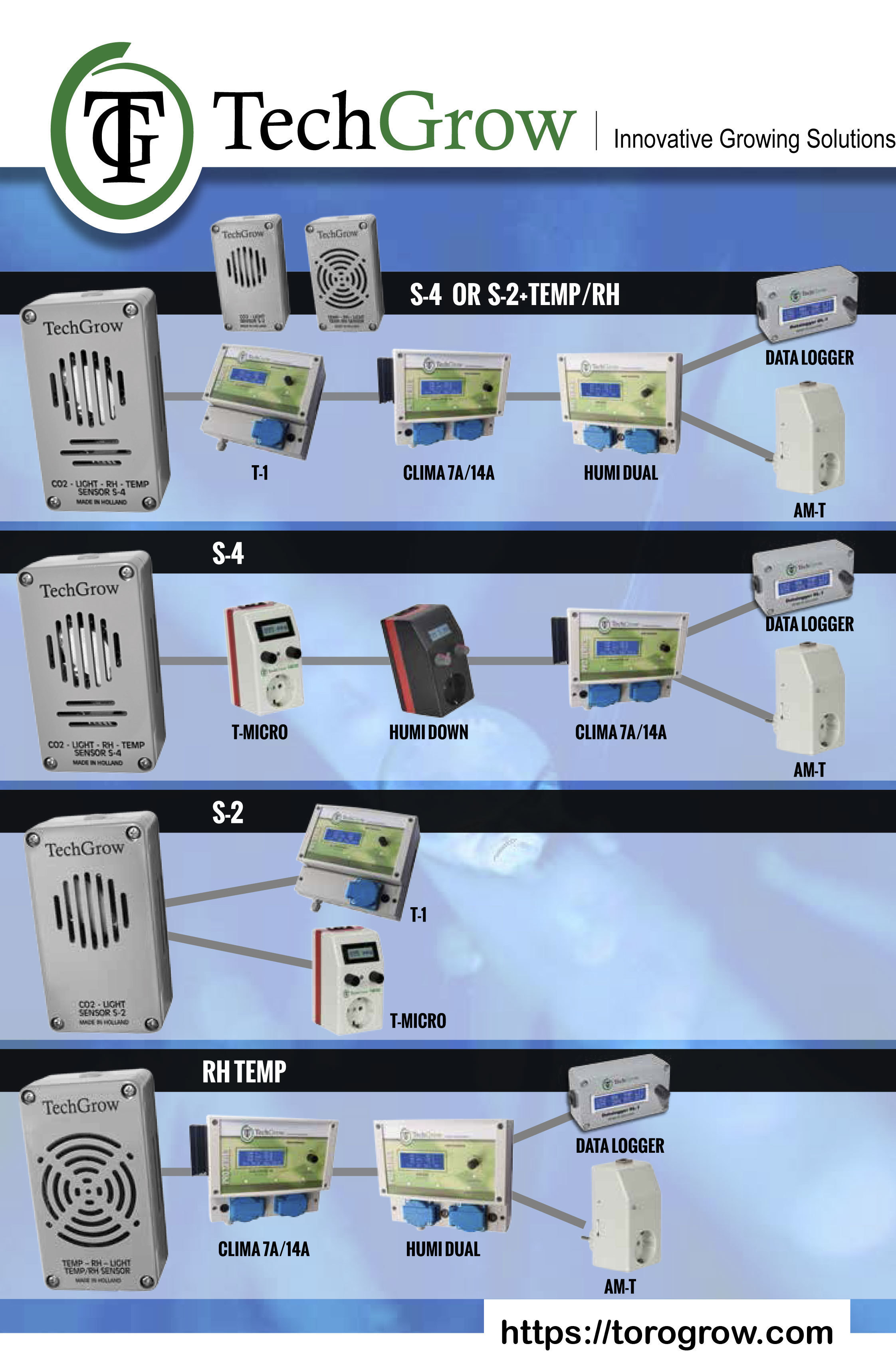

Possibility to connect the TechGrow AM-T: a SMS-module to remotely monitor the CO2concentration.
Technical specifications:
Power supply: 100 to 240 Volt (automatic).
Power frequency: 50 to 60 Hz
Consumption: 3 Watt (with sensor, without CO2-source).
Adjustment range CO2 set: 300 to 2000 ppm.
Adjustment range CO2 +/-: 20 to 200 ppm (advice 50 ppm)
