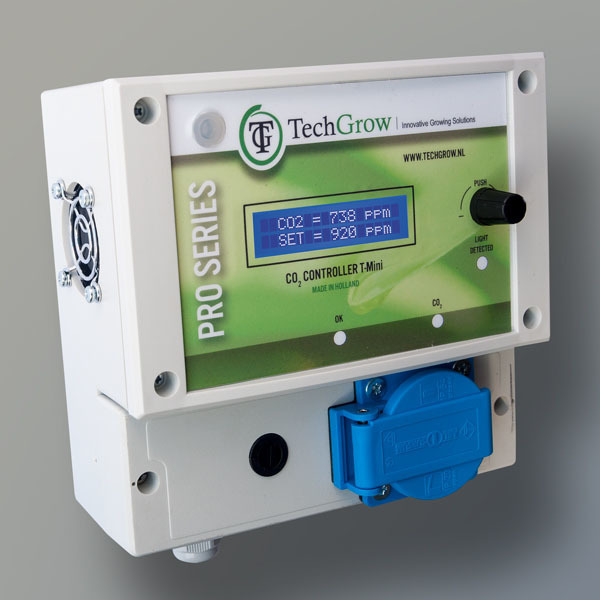

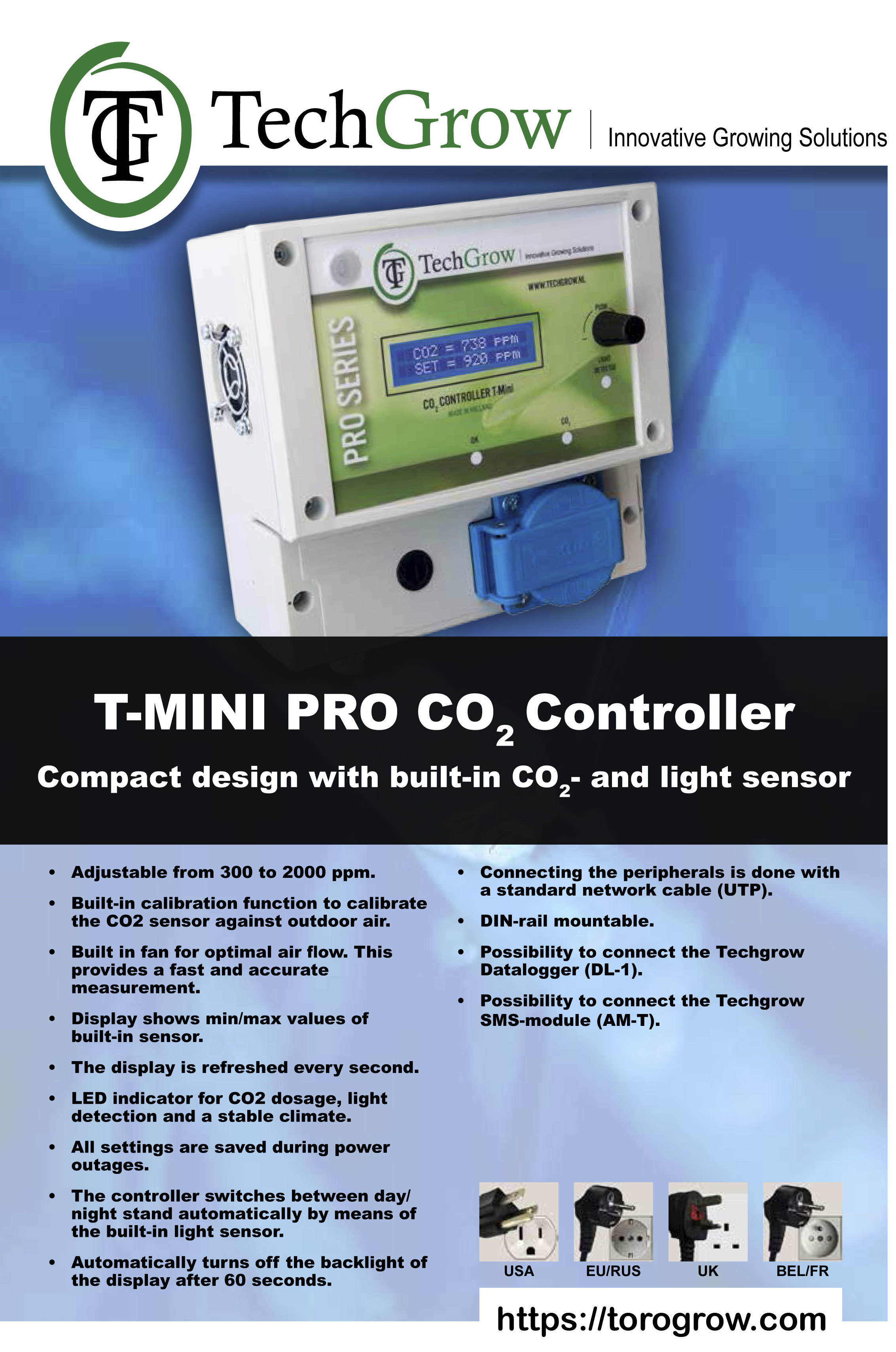

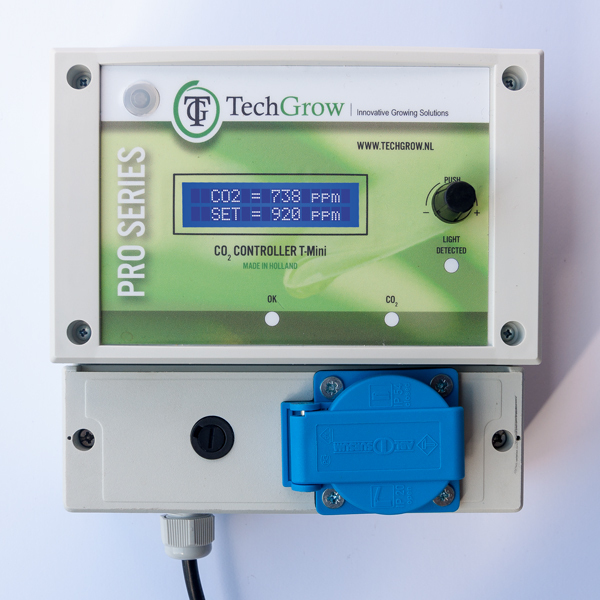

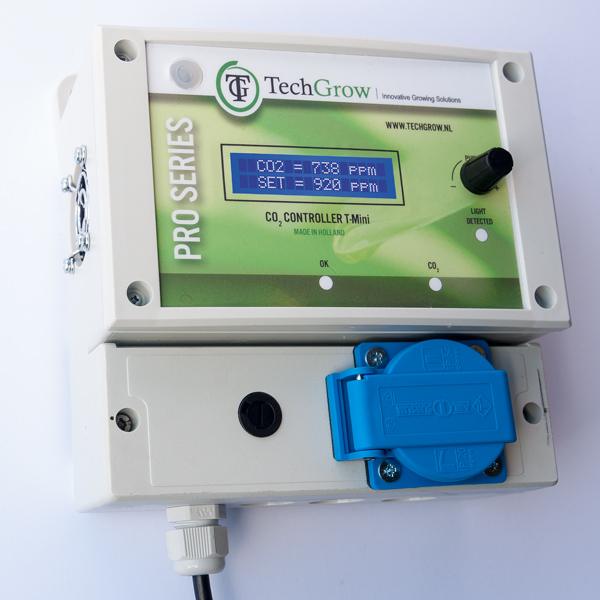

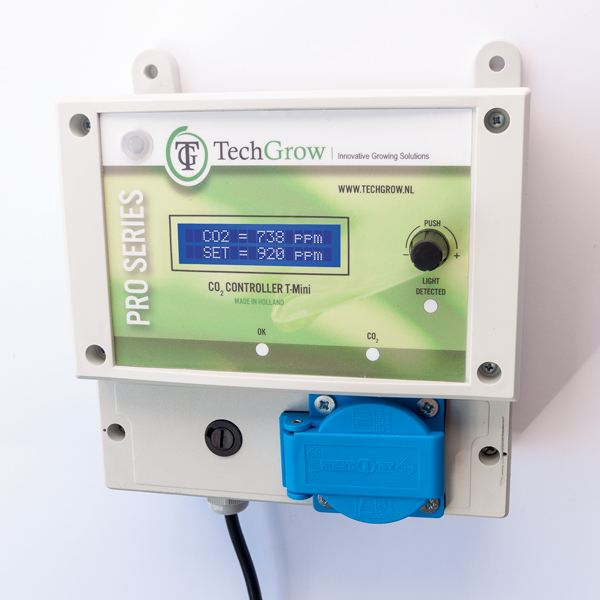

Pro Series T-Mini CO2 Controller

Compact design with built-in CO2 and light sensors

This completely redesigned controller is now easier to use and compatible with many other TechGrow products. The T-Mini Pro measures, controls and displays the CO2 value and registers min/max values. It come with a built-in light sensor to automatically switch between day and night modes. There is no CO2 dispensing during the night.

Features:

• Adjustable from 300 to 2000 ppm.
• Built-in calibration function to calibrate the CO2 sensor against outdoor air.
• Built in fan for optimal air flow. This provides a fast and accurate measurement.
• Display shows min/max values of built-in sensor.
• The display is refreshed every second.
• LED indicator for CO2 dispensing, light detection and a stable climate.
• All settings are saved during power outages.
• The controller switches between day/night mode automatically by means of the built-in light sensor.
• Automatically turns off the backlight of the display after 60 seconds.

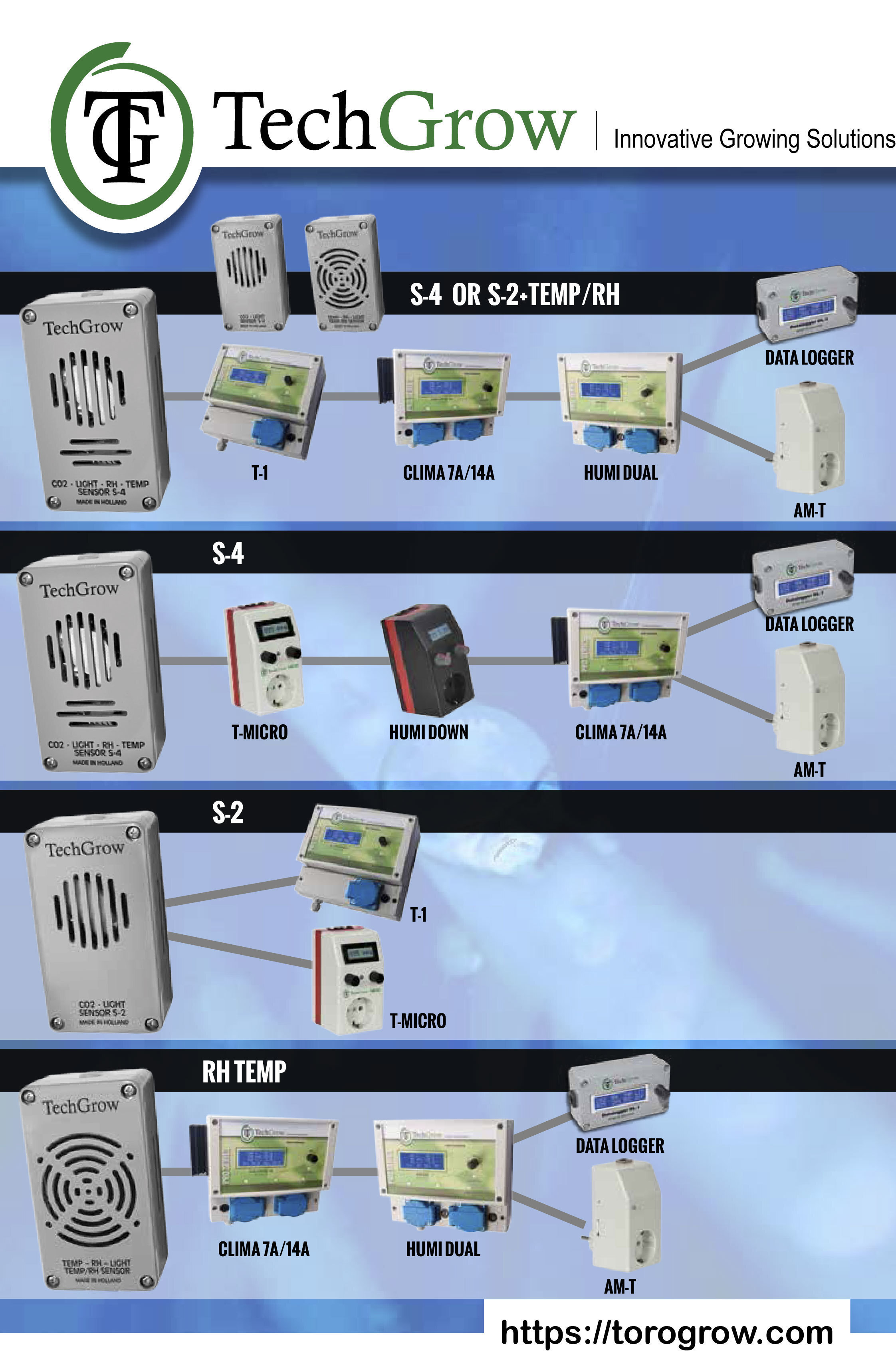

• Connecting the peripherals is done with a standard network cable (UTP).
• DIN-rail mountable.
• Possibility to connect the Techgrow Datalogger (DL-1).
• Possibility to connect the Techgrow SMS-module (AM-T)

Technical specifications:

• Power supply: 100 to 240 Volt
• Consumption: 3 Watt (with sensor, without CO2 source)
• Adjustment range CO2 set: 300 to 2000 ppm
• Adjustment range CO2 +/-: 20 to 200 ppm (advice 50 ppm)
• (hysteresis/bandwidth)
• Measurement interval: 1 measurement per second
