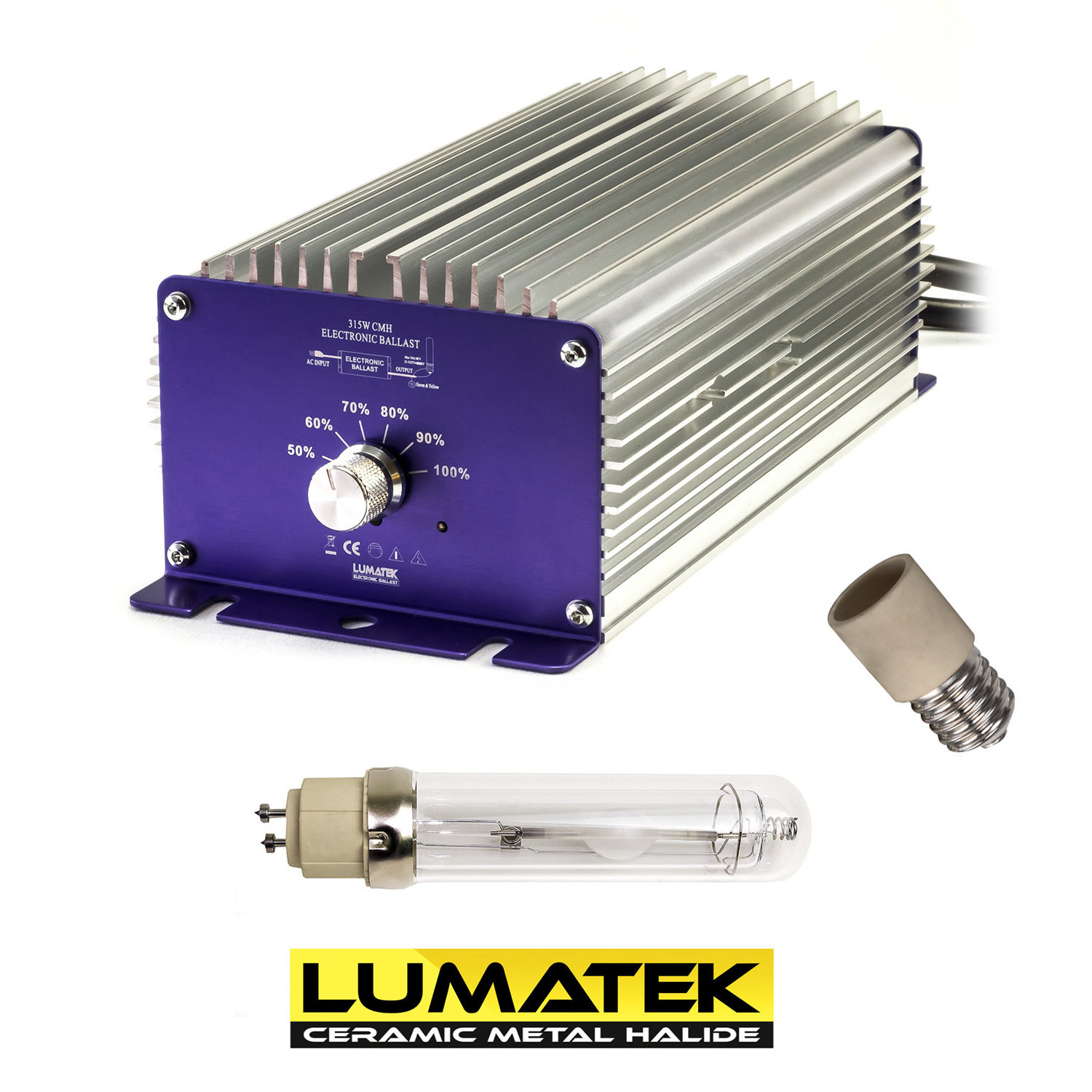

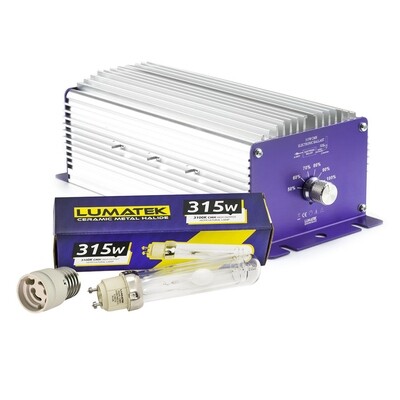

KIT Lumatek 315W CMH:

1) Lumatek Ballast 315W CMH (LEC)

2) Lumatek CMH/LEC lamp 315W

3) LEC-E40 adapter

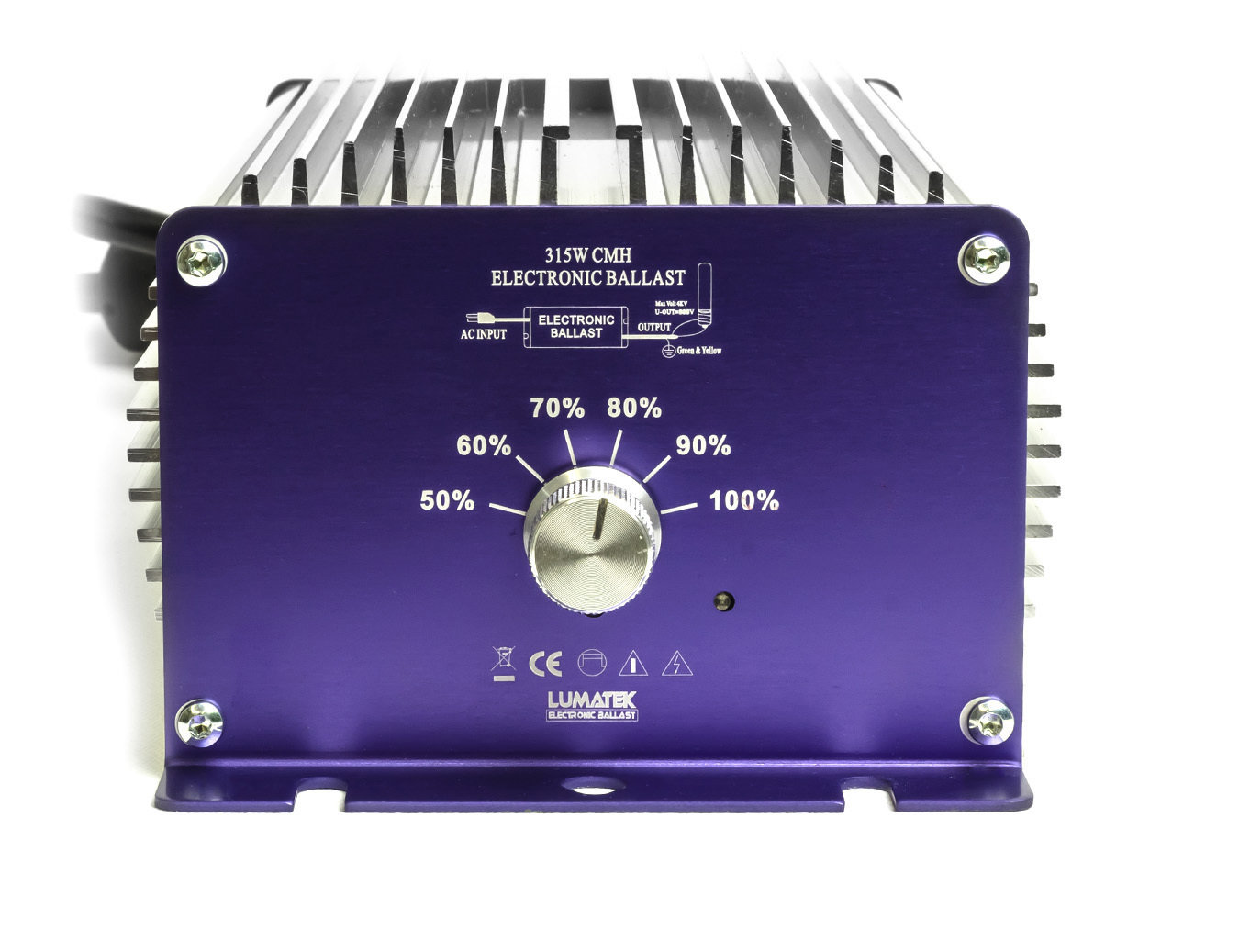

Lumatek Ballast 315W CMH (LEC)

Lumatek came up with this reliable digital ballast that has been successfully used in cultivation facilities around the world, it uses square-wave technology to efficiently fire and operate CMH lamps.

The Lumatek 315w CMH ballast when used with the 315W CMH lamps ensures healthy abundant yields, excellent PAR output levels per watt of power consumed and delivers outstanding results at an affordable price.

CMH technology output a CRI (Colour Rendering Index) of >90%, resulting in more umol (PAR) light than traditional HID/HPS/MH fixtures. 315w CMH fixtures also output more UV-A and UV-B.

Other brands refer to this technology as LEC. We reccommend using this ballast with Lumatek CMH lamps for greatest results. (daylight 4200K and agro 3100K available).

More Light – Less Heat – Optimal Control – More Yield

Key Specifications:

• Electronic ballast for 315W CMH lamps
• Voltage: 240V 50/60Hz
• Current: 1.50A
• Input power: 334W
• Output power: 315W
• Power factor: >0.97
• Voltage range: 185 to 275V
• THD: <10%
• CF: <1.6
• Operating frequency: low frequency
• No audible noise, no flicker
• Environment temperature for full load operation: 40℃
• Enclosure temperature rise (Δt): ) 30℃
• Ballast IP rated: IP20
• Humidity: 90%

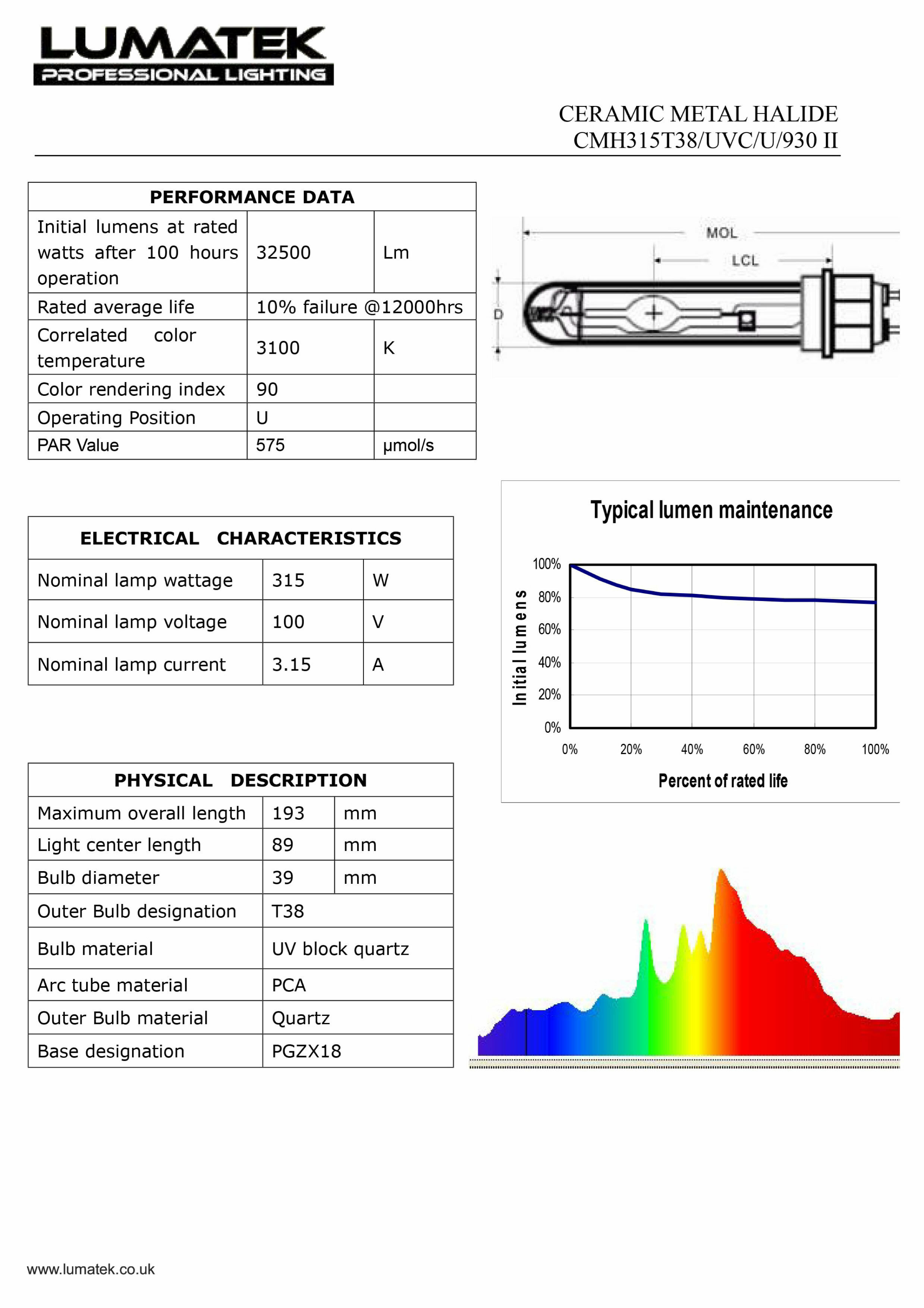

Lumatek lamp 315W CHM:

• Power Voltage: 240V
• Lamp Power (W): 315
• Lamp Current (A): 3.15
• Rated Life (H): 12000
• Initial Lumens (lm): 32500 (3100K);
• Luminous Efficiency (lm/W): 104 (3100K);
• PAR (micromols/sec): 575 (3100K);
• Bulb: T38
• Base: PGZX18
